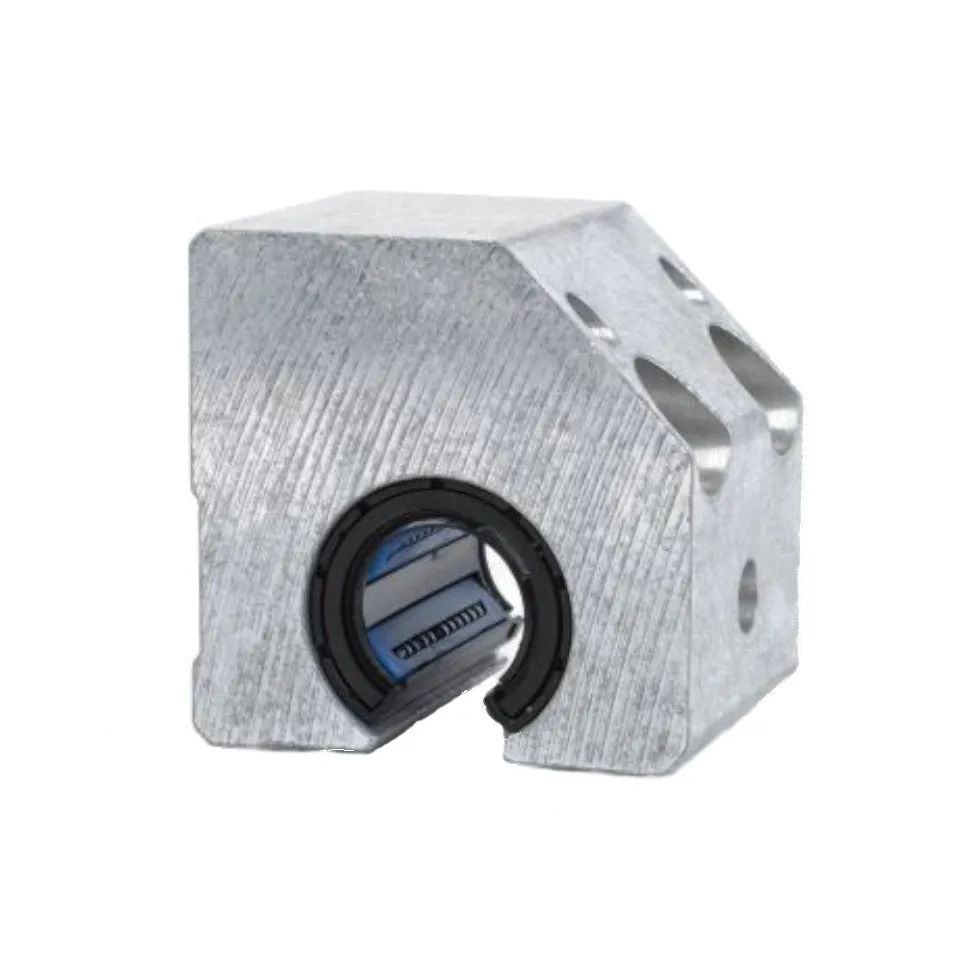

INA Linear bearings and linear bearing and housing units are available in the compact, light, heavy duty, machined and plain bearing range. The bearings can support high loads while having a relatively low mass and allow the construction of linear guidance systems with unlimited travel.

Each series has highly specific characteristics that precisely define it as suitable for particular applications. These may include, for example, requirements for compensation of misalignments, low-friction running, high accelerations and travel velocities or long operating life.

The range, which has been constructed and expanded in accordance with a modular concept, provides the best technical and economic solution, in relation to each application, for bearing arrangements with shaft guidance systems

Main Dimensions & Performance Data
F W 50 mm Diameter of ball complement
H 115 mm heigth
L 100 mm length
B 127 mm width
C max 15.100 N load capacity dyn.
C 0 max 13.900 N load capacity stat. C0max
3 kg Weight

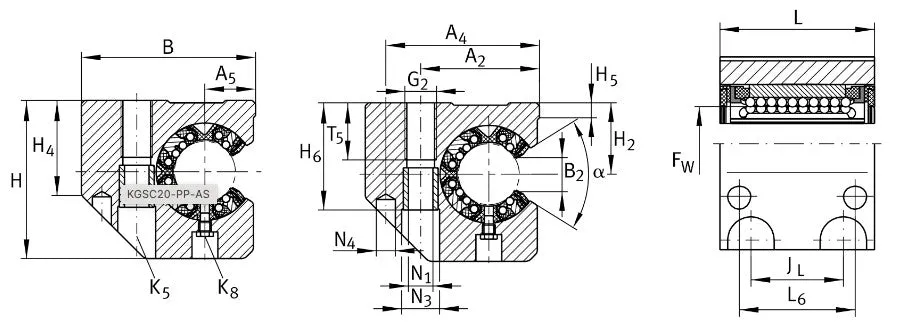

Mounting dimensions
A 2 88 mm
Tol A 2 0,15 Upper tolerance
Tol A 2 -0,15 Lower tolerance
A 4 109 mm
A 5 38 mm
Tol A 5 0,01 Upper tolerance
Tol A 5 -0,01 Lower tolerance
B 2 22,7 mm
J L 62 mm Distance
Tol J L 0,15 Upper tolerance
Tol J L -0,15 Lower tolerance
L 6 80 mm Distance
H 2 50 mm Center height
Tol H 2 0,008 Upper tolerance
Tol H 2 -0,016 Lower tolerance
H 4 70 mm
H 5 8,6 mm
T 5 36 mm
H 6 78,8 mm
G 2 M20
N 1 17,5 mm
N 4 12 mm
N 3 26 mm
K 5 M16
K 8 NIP6MZ Lubrication nipple
W 5 mm Width across flats
54 Angle
6 Ball rows
